Elektronik Devre (PCB) Özellikler Tablosu
| ME | MF | |
|---|---|---|
| Frequency | 13.56Mhz | 13.56Mhz |
| Detection Method | Mikrowave | Mikrowave |
| Log Capacity | 240 | 800 |
| Log Reading | by Card | by Card |
| Temperature | -15C / 60C | -15C / 60C |
| Sensor Distance | 3~5cm | 3~5cm |
| Battery Life | 12~16 months | 12~16 months |
| Voltage Alarm | Yes | Yes |
| Lock Alarm | Available | Available |
| MSSQL Client (Client) Server (Server) | Yes | Yes |
| Windows | XP,7,8.1,10,11 | XP,7,8.1,10,11 |
| Lock Weight | 3.5kg | 3.5kg |
| Elektronik Kilit Özellikleri | TT |
|---|---|
| Lock Unlocking Method | Card, Password, Bluetooth. |
| Mechanical Key | Yes |
| Start Time | <1 second |
| Create Admin Account | Yes |
| Opening Remotely with Gateway | Yes |
| Assistant Support | Google Home and Amazon Alexa |
| Opening via Bluetooth from a mobile device | Available |
| Operating Voltage | 6V, 4 pieces of Akalin |
| Static Power Consumption | <4μA |
| Dynamic Power Consumption | 200 mA |
| Operating Temperature | Between -20 °C and 50 °C |
| Maximum Humidity | ≤ %80 |
| Sensor Distance | 3~5cm |
| Lock Weight | 3.5kg |
| Battery Life | 12~16 months |
| Voltage Alarm | Yes |
| Lock Alarm | Available |
| TTLOCK and TTHOTEL | Yes |
F1 Series
RFID Card Hotel Lock System
Since 2004, we have been manufacturing RFID Card Lock Systems. Our systems use Philips NXP RFID chips and Texas Instruments processors. We have interior locks compliant with EURO DIN and ANSI standards. We provide special solutions for renovation projects.
Our products come with a 2-year warranty, and software updates are released free of charge.
Having secured our place in over 100,000 rooms across 26 countries, we look forward to being part of your project too.
The F1 series utilizes Radio Frequency Identification (RFID) technology. It is also designed to function reliably under challenging mechanical conditions, featuring a 304-grade stainless steel body.
The Makfa F1 boasts a unique mounting and connection system compared to its competitors. This system is both comfortable and extremely robust, preventing loosening over time and remaining unaffected by the natural movement of the door. The opening angle of the handle is very low, allowing the door to be opened with a light touch.
Software copying or running elsewhere is prevented with the Crypto Key Dongle.
The F1 also includes a concealed mechanical key for emergency situations, allowing the lock to be opened when needed.
F1 RFID Electronic Hotel Lock
System Features
- ISO/IEC 14443 Technology. Stable and Accurate Card Reading
- Long Battery Life. Microwave Wake-Up Technology. Texas Instruments/Atmel Processor Technology
- Compatible with ISO cards, label cards, wristbands, and keychains.
- Can read paper label cards with a diameter of 30mm. Can read cards from inside a wallet.
- Works for approximately 2 years with 4 AA alkaline batteries.
F1 with Mortise Options
| A1-A2 | E2 | E3-E1 | K6-K7 | L1 | |
|---|---|---|---|---|---|
| Anti Friction Latch | Yes | Yes | – | Yes | Yes |
| Anti-Pick (Theft) Latch | Yes | Yes | – | – | – |
| Deadbolt | Yes | Yes | Yes | – | Yes |
| Anti-Panic Exit | Yes | Yes | Yes | Yes | Yes |
| Auto-Locking Function | – | – | Yes | – | Yes |
| Min Door Thickness | 40mm | 30mm | 30mm | 32mm | 42mm |
| Cylinder Type | ANSI | Euro | Euro | Euro | Euro |
| Electronic DND Function | Yes | Yes | – | Yes | – |
Body / Lock Features
- Stainless Steel Body. Various handle options.
- Optional PVD Coating for outdoor use.
- Special mounting system ensuring stable usage.
- Easy maintenance. Reinforced design.
- Multiple lock options. Refer to the table.
- Suitable for 120 minutes fire-resistant doors. CE, FCC, ISO.
- Friction and sound prevention tongue.
- Do not disturb function and One-motion exit feature.
- Anti-intrusion (anti-theft) tongue.
- Standard German Barrel, Hub. Does not contain plastic in the mechanism.

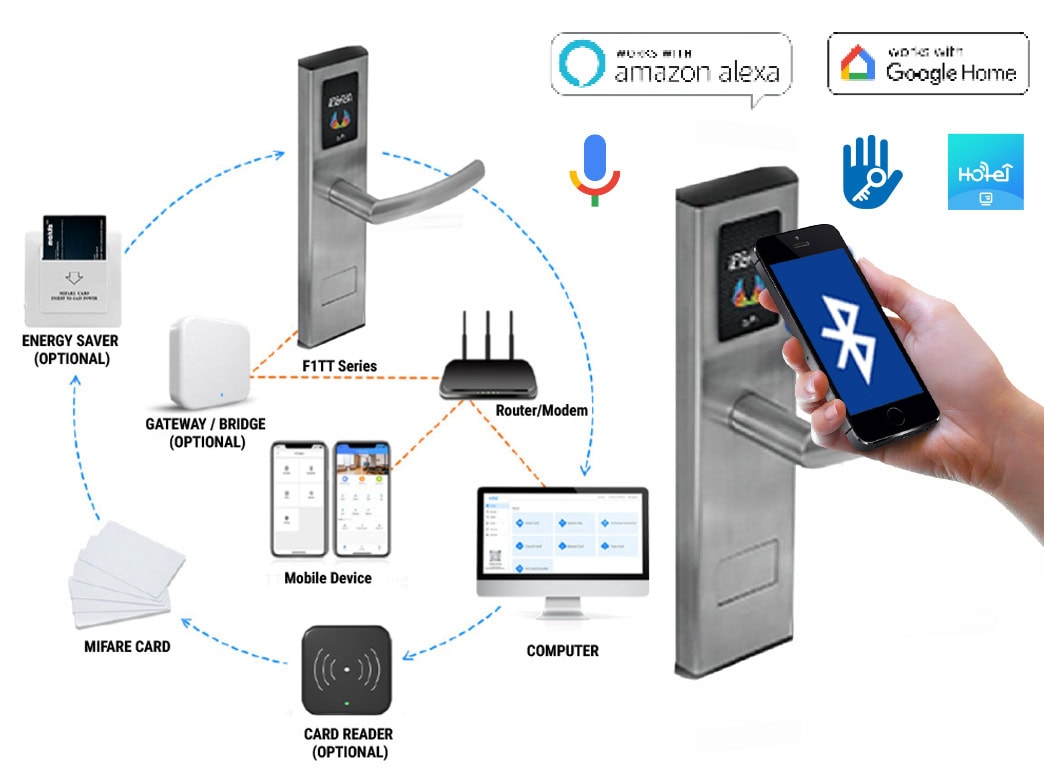

Gateway / Bridge Features
- The lock can be remotely managed and unlocked (e.g., from a reception) using Bluetooth, card, or gateway.
- Keys can be created for unlocking the lock from other mobile devices.
- Opening logs can be tracked remotely.
- You can view the lock’s battery status remotely.
- All settings are configured via the TTLock and TTHotel software. It is easy to use.
- With the gateway, you can add scenarios to your locks using Google Home Assistant and Amazon Alexa and benefit from the remote voice command unlocking feature.
