Makfa Electronic Lock Technical Specifications
Lock Opening Method Card, Password ve Bluetooth
Mechanical Key Yes
Start Time <1 saniye
Administrator Creation Yes
Card Creation Yes
Assistant Support Google Home and Amazon Alexa
Working Voltage 6V, 4 Adet Alkaline Batteries
Static Power Consumption <4 μA
Dynamic Power Consumption 200 mA
Temperature -20°C to 50°C Range
Max Humidity ≤ %80
Door Thickness 38~60mm
Sensor Range 3~5cm
Lock Weight 3.5 kg
Battery Life 12~16 month
Voltage Alarm Yes
Closing Alarm Yes

M8TT Series TTHotel TTLock Smart Lock – Smart Lock

RFID Card, Encrypted, and Bluetooth Smart Lock System

Since 2004, we have been manufacturing RFID Card Encrypted Lock Systems. Our systems utilize Philips NXP RFID chips and Texas Instruments Processors. We have interior locks compliant with EURO DIN and ANSI standards. We specialize in producing customized solutions for renovation projects.

Our products come with a 2-year warranty, and software updates are provided free of charge.

Having established our presence in over 26 countries with more than 100,000 rooms, we hope to be part of your project as well.

Modern and Extra Powerful Arm Mechanism

The M8 series offers Bluetooth, PIN Code, Card, and mechanical key access, allowing remote unlocking with a gateway. It provides an optional TThotel system for hotel lock applications and is suitable for modern offices, office buildings, high-end apartments, and villas with TTLock technology. Designed to withstand challenging conditions mechanically, it features a Stainless Steel Body.

The Alplock M8 boasts a unique mounting and connection system, offering both comfort and durability. It prevents loosening over time, unaffected by the natural movement of wood. The low opening angle allows for easy door opening with a gentle touch.

For outdoor use, the M8 is circuit-sealed with silicone. It also includes a hidden mechanical key for emergency situations.

Features

  • The lock system offers both durability and convenient usage.
  • Suitable for hotels, modern offices, office buildings, high-class apartments, and villas.
  • Unlocking methods include Bluetooth, PIN code, card, and a mechanical key, with the option of remote unlocking via a gateway.
  • Unlocking modes can be adjusted according to your preference.
  • Touchscreen password entry is available.
  • Features microwave wake-up technology.
  • All settings are easily configured through the TTHotel or TTLock software, ensuring simple usage.
  • Keys for opening the lock from other mobile devices can be generated.
  • Additional administrators can be added to the application.
  • Create 4-9 digit passwords for added security.
  • Operates with alkaline batteries, providing low consumption and long usage life.
  • Voltage deficiency indicator is available.
  • Benefit from the remote unlocking feature using Google Home Assistant and Amazon Alexa via the gateway.

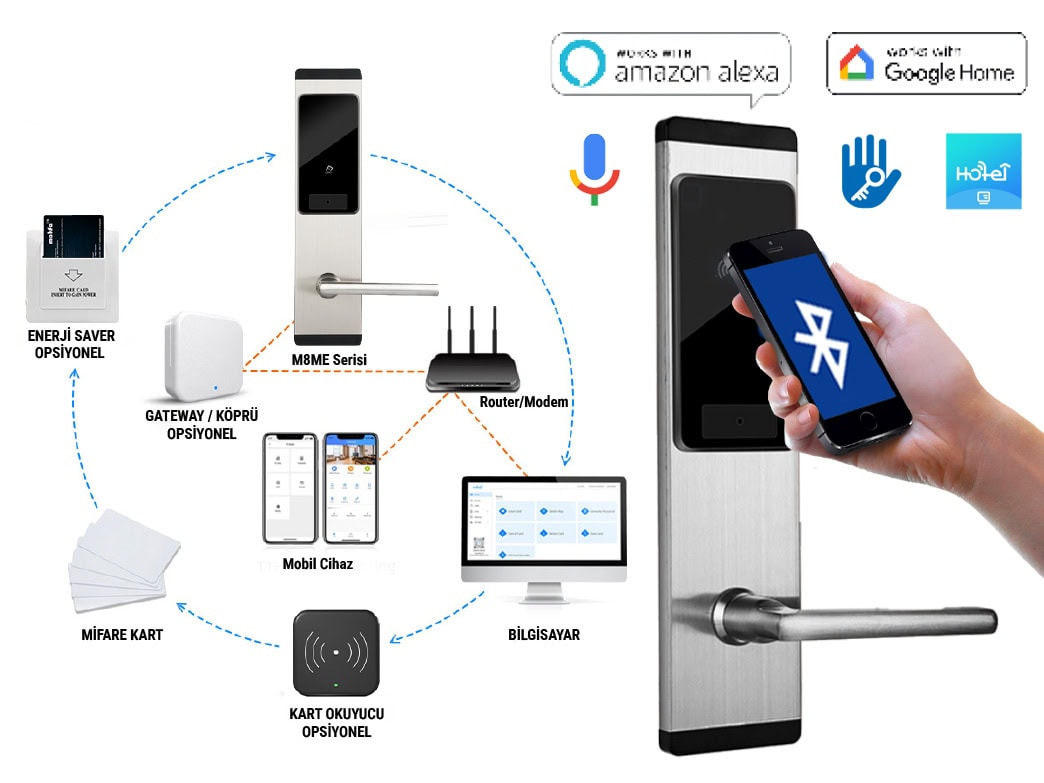

Gateway / Bridge Features

  • The lock can be remotely managed and unlocked (e.g., from a reception) using Bluetooth, card, or gateway.
  • Keys can be created for unlocking the lock from other mobile devices.
  • Opening logs can be tracked remotely.
  • You can view the lock’s battery status remotely.
  • All settings are configured via the TTLock and TTHotel software. It is easy to use.
  • With the gateway, you can add scenarios to your locks using Google Home Assistant and Amazon Alexa and benefit from the remote voice command unlocking feature.

Fire-Resistant Hotel Locks

 Our specially designed locks for hotels combine high fire resistance with elegant design. The safety of your guests is our top priority; our products are tested in accordance with international fire safety standards, certified with a fire resistance report, and have successfully passed all fire tests to obtain widely recognized certification.

 Combining aesthetics and durability, our locks add a touch of elegance to your hotel rooms while providing maximum protection against fire. They are the ideal solution for hotels seeking both comfort and safety.
